View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0000464HeurekaMappublic2021-12-29 17:392022-02-21 11:02
ReporterPeder Assigned ToLinus
PrioritynormalSeveritymajorReproducibilityalways
Status feedbackResolutionopen
Product Version2.17.7
Summary0000464: Heureka fails to discover some polygon adjacencies
DescriptionHeureka fails to discover some polygon adjacencies
Steps To Reproduce1. Import attached stand register and shape file containing two stands
2. Run Compute Adjancencies from the Tools menu

Result: No adjacencies were found
Expected result: The two polygons share 265 meter border


The following script uses Sql Server's built-in spatial methods and can be used for comparison. In this case a shared border must be at least 10 m to count.

WITH p AS (
SELECT
    b.TreatmentUnitGuid,
    b.SHAPE,
    tu.Description
FROM GIS_Polygon_New b
)

--INSERT INTO TreatmentUnitNeighbour
SELECT p.TreatmentUnitGuid
        ,c.TreatmentUnitGuid
        ,p.SHAPE.STIntersection (c.SHAPE).STLength() AS LENGTH_M
    FROM GIS_Polygon_New c
    INNER JOIN p ON p.Shape.STIntersects(c.Shape) = 1
    WHERE p.TreatmentUnitGuid<>c.TreatmentUnitGuid AND
    p.SHAPE.STIntersection (c.SHAPE).STLength() >= 10
GO
TagsNo tags attached.
Attached Files
HeurekaBugg464.zip (6,236 bytes)
ProductGeneral

Activities

Linus

2022-02-21 11:01

administrator   ~0000450

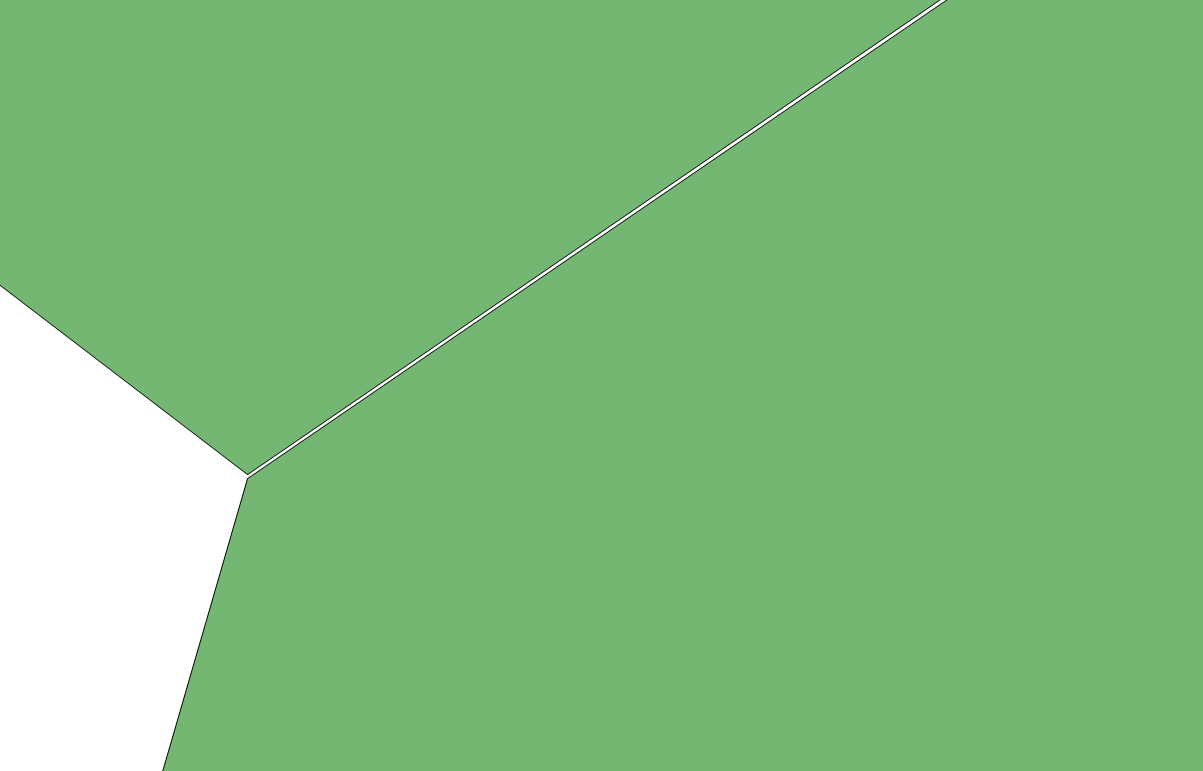

Borders are imprecise. Sometimes overlapping and sometimes not touching.

Issue History

Date Modified Username Field Change
2021-12-29 17:39 Peder New Issue
2021-12-30 09:29 Peder Description Updated
2021-12-30 09:29 Peder Steps to Reproduce Updated
2021-12-30 09:30 Peder File Added: HeurekaBugg464.zip
2022-02-21 11:01 Linus File Added: Untitled.png
2022-02-21 11:01 Linus Note Added: 0000450
2022-02-21 11:02 Linus Assigned To => Linus
2022-02-21 11:02 Linus Status new => feedback
